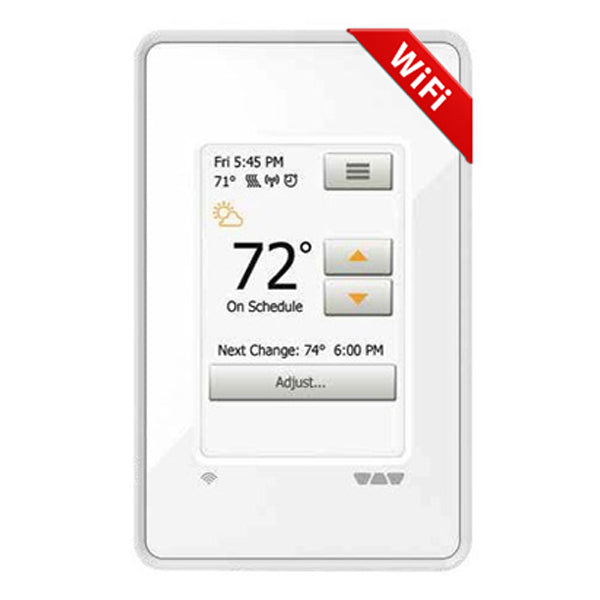

Introducing, the new DITRA-HEAT-E-WiFi thermostat, our newest touchscreen programmable thermostat with Wi-Fi connectivity.

Easy to use with intelligent, adaptive control, the DITRA-HEAT-E-WiFi thermostat makes controlling and monitoring your DITRA-HEAT floor warming system convenient and accessible—from any location—on your smartphone and online.

DITRA-HEAT-E-WiFi is a programmable WiFi touchscreen thermostat used to control the DITRA-HEAT-E-HK heating cables (either 120 V or 240 V). The thermostat features a built-in Class A ground fault circuit interrupter (GFCI) and includes a floor temperature sensor. DITRA-HEAT-E-WiFi is operated via LCD touchscreen controls and features a pre-set schedule for convenience, which may be programmed to fit any schedule. When connected to WiFi, the thermostat provides convenient monitoring and adjustment of the floor warming system via the web or mobile app. Two heating cables may be connected to the thermostat, up to the total heating load limit of 15 amps. The DITRA-HEAT-E-RR power module may be used in conjunction with the thermostat when the heating load exceeds 15 amps (e.g., in large floor applications) to maintain a single point of control.

This new Wi-Fi thermostat now brings smart home technology to our award-winning DITRA-HEAT electric floor warming system. With Wi-Fi access to your system, controlling and managing the temperature of your floor is fast and simple, whether at home or on the road.

  • Control your floor heating system from your smartphone or online
  • 3.5" color screen with easy interactive touch control
  • Displays local temperature & weather forecast
  • Set-up wizard walks you through programming
  • The thermostat can detect an open window and shut off heating (so you don’t waste energy!)
  • Even small hands can’t alter the temperature
Instructions
Instructions
x

Instruction manual link:
DITRA-HEAT-E-WiFi Touch User Manual

Install Steps:

Please refer to the Interactive User Guide and Schluter®-DITRA-HEAT Installation Handbook for complete DITRA-HEAT system installation instructions.

  1. DITRA-HEAT-E-WiFi must be installed in an electrical box. A single gang, deep electrical box or a double gang electrical box with a single gang mud ring is recommended to provide room for the wiring.
  2. The power supply must be shut off and all electrical connections must be made by a qualified electrician, according to the electrical and building codes effective in your region.
  3. Connect the heating cable ground braid to the ground wire from the electrical panel.
  4. Remove the faceplate from the thermostat power base by loosening the screw and tilting the thermostat upward. Remove the back cover clip as well.
  5. For ease of installation, form the electrical line wires into an “M” or accordion shape. This will make it easier to fold them neatly into the electrical box. Loosen the load screws at the top of the thermostat until they stop.
  6. Insert the heating cable conductors into the load terminals from the bottom. Since there is no polarity, either heating cable conductor can be connected to either load terminal.
  7. Secure the conductors by tightening the screws.
  8. Insert the electrical line wires into the line terminals from the top. Refer to the back of thermostat for proper wiring configuration.
  9. Secure the wires by tightening the screws and fold the wires into the electrical box.
  10. Align and secure the thermostat power base to the electrical box.
  11. Thread the floor temperature sensors through the opening at the bottom right of the thermostat power base. Tape up the secondary floor temperature sensor and secure to the power base.
  12. Strip the ends of the floor temperature sensor to expose the wires for ease of installation. Insert the floor temperature sensor wires into terminals C and D. Note that the floor temperature sensor wires have no polarity and can be interchanged between C and D terminals.
    Tighten the screws to secure the wires.
  13. The power, heating cable, and floor temperature sensor connections are now complete. Replace the thermostat faceplate and tighten the screw at the bottom of the unit.

Note: Two DITRA-HEAT-E-HK heating cables can be connected and controlled by a single DITRA-HEAT-E-WiFi thermostat if the total current is less than 15 amps. The heating cable leads must be wired in parallel according to applicable electrical and building codes. Multiple DITRA-HEAT-E-HK heating cables over 15 amps cannot be connected to a single DITRA-HEAT-E-WiFi thermostat. Additional DITRA-HEAT-E-WiFi thermostats must be used or the DITRA-HEAT-E-WiFi thermostat may be combined with the DITRA-HEAT-E-RR power modules.

Specification
Specification
x
More Details
More Details
x
Brand Name DITRA-HEAT
Size in Inches 5-1/4" H x 3-1/2" W
