Nuheat Cable is an Electric Radiant Floor Heating system designed to allow installers to customize the layout instantly making adjustments to the floor heating coverage for any room. The flexible installation method lets you heat floors with curves or angles and work around obstructions like floor heating vents.
Features:
Nuheat Cable is an alternative to Custom Nuheat Mats, but takes more time, effort and thought since you determine and customize the layout as you go. Like Nuheat Mats, Nuheat Cables are approved for use in wet areas including shower floors and seats.
Nuheat Cable kits include enough cable guides for installation and extras are available for purchase. A Nuheat thermostat is required and sold separately.
Nuheat Cable Installation Manual
Indoor / OutdoorINTERIOR floor heating Application only. Embedded in Mortar only
50 Degrees F / 10 Degrees C
15 Amps
Maximum Circuit Overload Protection20 A Breaker.
Shower InstallationYes, can be installed in a tiled shower.
Trowel Size recommendedminimum 3/8" x 1/4". Works for most ceramic tile; verify with tile/mortar manufacturer
Distance from ToiletInstall 4-6" away from the toilet drain wax ring. It can be under the front of toilet - Approximately 20" from wall.
UPC | 620713030332 |
---|---|
Heating Power Output Total | 9840 BTU total |
Heating Power Output per Hour (BTU) | 41 BTU per Sq Ft/Hour |
EMF (Electro Magnetic Field) | Zero EMF |
Ohms Reading (resistance value) | 20 (Range is 19-22 ohms) Nuheat ohms range is -5% to +10% |
Power Lead Wire Gauge | 16 AWG |
Power Lead Length | 11' |
Power Lead Type | TEW Wire with Stainless Steel ground braid rated to 105 C and 300v max. |
Voltage | 240 VAC |
Wattage per SF | 12 |
Spacing of Heating Wire | 3" on center only |
Heated Area Size Covered | 240 |
Brand Name | Nuheat |
---|---|
Warranty from Manufacturer | 25 years |

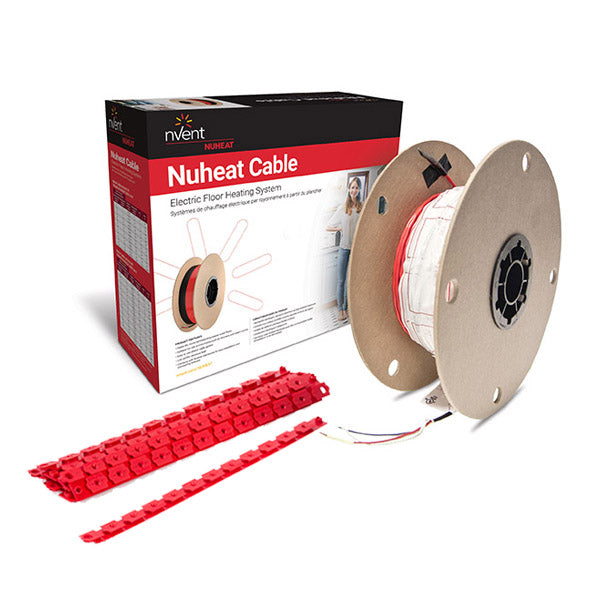

What's In The Box | (1) 953.1ft spool of cable, 144 cable guides |
Amp Draw | 12.2 |
Total Watts | 2880 watts |
Acceptable Floor Coverings | Tile, Stone,Granite, Marble, Slate, Engineered wood, Laminate |
