Nuheat - 25 Sq Ft Radiant Floor Heating Cable (120V)
Nuheat - 25 Sq Ft Radiant Floor Heating Cable (120V)
Nuheat - 25 Sq Ft Radiant Floor Heating Cable (120V)
Nuheat - 25 Sq Ft Radiant Floor Heating Cable (120V)
Nuheat - 25 Sq Ft Radiant Floor Heating Cable (120V)

Nuheat - 25 Sq Ft Radiant Floor Heating Cable (120V)

Vendor: nVent
SKU: N1C025
CA$265.66
CA$312.54
CA$265.66
Description
Description
x

Nuheat Cable is an Electric Radiant Floor Heating system designed to allow installers to customize the layout instantly making adjustments to the floor heating coverage for any room. The flexible installation method lets you heat floors with curves or angles and work around obstructions like floor heating vents.

Features:

  • Recently redesigned for better performance and easier installation it is in stock today.
  • Thinnest power lead and connection joint keeps your floor profile low and eliminates notching of sub floor
  • New Cable Guide design ensures they lay flat and plastic material won't nick the cable
  • Cables guides (each is 12 in. long) are included in the box
  • Zero EMF cable design uses 2 conductors twisted for active EMF cancelling
  • Halfway point is marked on each cable so you can adjust if needed
  • 25 Year Manufacturer warranty
  • Available in sizes to heat 8 to 120 SF in 120v or 15 to 240 SF in 240v

    • Nuheat Cable is an alternative to Custom Nuheat Mats, but takes more time, effort and thought since you determine and customize the layout as you go. Like Nuheat Mats, Nuheat Cables are approved for use in wet areas including shower floors and seats.
    Nuheat Cable kits include enough cable guides for installation and extras are available for purchase. A Nuheat thermostat is required and sold separately.

    Instructions
    Instructions
    x

    Instruction manual link:
    Nuheat Cable Installation Manual

    Indoor / Outdoor: INTERIOR floor heating Application only. Embedded in Mortar only

    Minimum Installation Temperature: 50 Degrees F / 10 Degrees C

    Maximum Circuit Load: 15 Amps

    Maximum Circuit Overload Protection: 20 A Breaker.

    Shower Installation: Yes, can be installed in a tiled shower.

    Trowel Size recommended: minimum 3/8" x 1/4". Works for most ceramic tile; verify with tile/mortar manufacturer

    Distance from Toilet: Install 4-6" away from the toilet drain wax ring. It can be under the front of toilet - Approximately 20" from wall.

    Specification
    Specification
    x
    UPC 620713030042
    Heating Power Output Total 1025 BTU total
    Heating Power Output per Hour (BTU) 41 BTU per Sq Ft/Hour
    EMF (Electro Magnetic Field) Zero EMF
    Ohms Reading (resistance value) 47 (Range is 44-52 ohms) Nuheat ohms range is -5% to +10%
    Power Lead Wire Gauge 18 AWG
    Power Lead Length 11'
    Power Lead Type TEW Wire with Stainless Steel ground braid rated to 105 C and 300v max.
    Voltage 120VAC
    Wattage per SF 12
    Spacing of Heating Wire 3" on center only
    Heated Area Size Covered 25
    More Details
    More Details
    x
    Brand Name Nuheat
    Warranty from Manufacturer 25 years

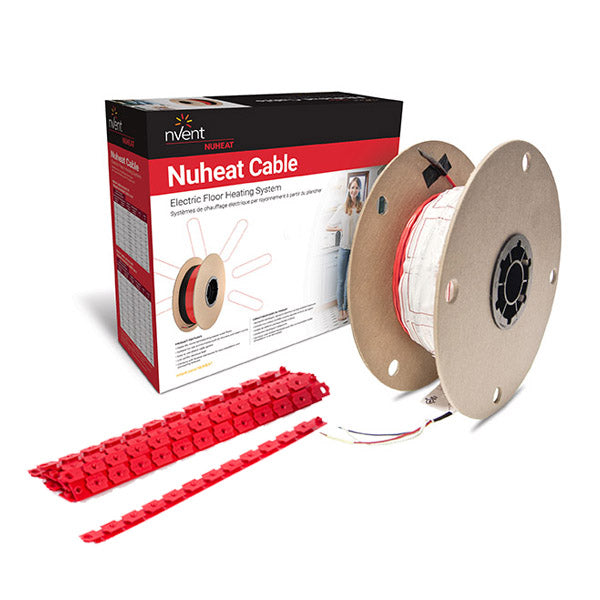

    What's In The Box (1) 98ft spool of cable, 24 cable guides
    Amp Draw 2.5
    Total Watts 300 watts
    Acceptable Floor Coverings Tile, Stone,Granite, Marble, Slate, Engineered wood, Laminate
