Nuheat Mat · 118" x 36" (120V)
Nuheat Mat · 118" x 36" (120V)

Nuheat Mat · 118" x 36" (120V)

Nuheat Mat 120V 118" x 36" F3009, Model: F3009, MPN: F3009 by Nuheat Industries Ltd. Good for Tile, Stone,Granite, Marble, Slate, Engineered wood, Laminate.
Vendor: nVent
SKU: F3009
CA$381.29
CA$448.58
CA$381.29
Description
Description
x

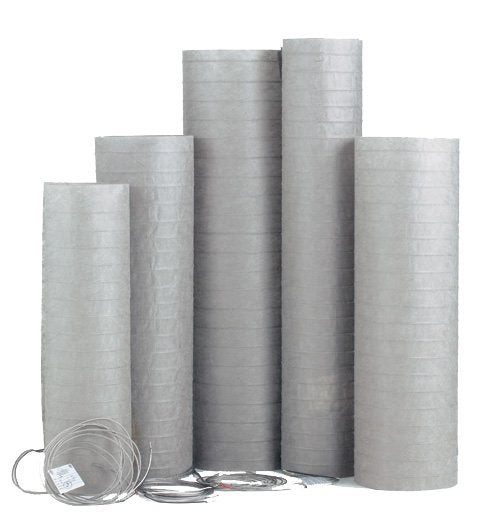

Nuheat standard size pre-built floor heat mats come ready to fit the room and will keep almost any flooring at a warm and comfortable temperature that you set on the Nuheat thermostat control.

You can use more than one Nuheat mat combined to fit any room size or shape, up to the amp limit of the thermostat (150 SF for 120v / 300 SF for 240v Mats). All Mats connect to the Thermostat, not to each other.

Nuheat mats are like electric blankets - you choose the size or sizes to cover your desired floor area - or ask for our expert assistance at NO OBLIGATION. The mats cannot be cut or altered, so be sure to choose the right size. We can help with that!

Instructions
Instructions
x

Instruction manual link:
Nuheat Standard Mat Installation Manual

Indoor / Outdoor: INTERIOR floor heating application only. Embedded in thinset mortar only.

Install Steps:

Nuheat mats are squares and rectangles in over 120 sizes and will fit any room regardless of shape or size. When installing your floor, the heating mats are set in a thin spread of mortar (the same bonding materials used to lay your tile floor). Once your subfloor is prepared, and you have installed the Nuheat mat, apply another layer of thinset or mortar, lay your tile as usual and make the final connection to the Nuheat Thermostat control.

Laminate & Engineered Hardwood: simply install the Nuheat mat as above. Next, cover the Nuheat mat with at least 1/4 inch mortar or floor leveling cement. Once the mortar has cured, install your floor according to the flooring manufacturer's instructions.

Minimum Installation Temperature: 50° Degrees F / 10° Degrees C

Maximum Circuit Load: 15 Amps

Maximum Circuit Overload Protection: 20 A Breaker.

Shower Installation: Yes, can be installed in a tiled shower.

Trowel Size recommended: Minimum 3/8" x 1/4". Works for most ceramic tile; verify with tile/mortar manufacturer.

Distance from Toilet: Install 4-6" away from the toilet drain wax ring. It can be under the front of toilet - Approximately 20" from wall.

Specification
Specification
x
UPC 620713000571
Heating Power Output Total 1209.5 BTU total
Heating Power Output per Hour (BTU) 41 BTU per Sq Ft/Hour
Ohms Reading (resistance value) 39 - 45 ohms
Power Lead Wire Gauge 18 AWG
Power Lead Length 10'
Power Lead Type TEW Wire with Stainless Steel ground braid rated to 105 C and 300v max.
Thickness Mat is .083, total is 1/8" with thinset underneath.
Voltage 120 VAC
Wattage per SF 12
Spacing of Heating Wire 2.0"
Heated Area Size Covered 29.5
More Details
More Details
x
Brand Name Nuheat
Safety Listing UI (US) 1693; UL (CAN/CSA) C22.2 #217; NEC Article 424 Floor Warming Systems
Length of Heated Area (ft) 3'
Length of Heated Area (in) 36"
Warranty from Manufacturer 25 year warranty
What's In The Box Nuheat Mat, Complete instructions. Installation videos online.
Amp Draw 3
Wire Construction Copper/Copper Alloy Heating wire insulated with ETFE and surrounded with protective Stainless steel ground shield.
Total Watts 354 watts
Size in Feet 9.83' x 3' (9.83x3 feet)
Size in Inches 118" x 36" (118x36 inches)
Size in Meters 3m x 0.91m (3x0.91 meters)
