Description

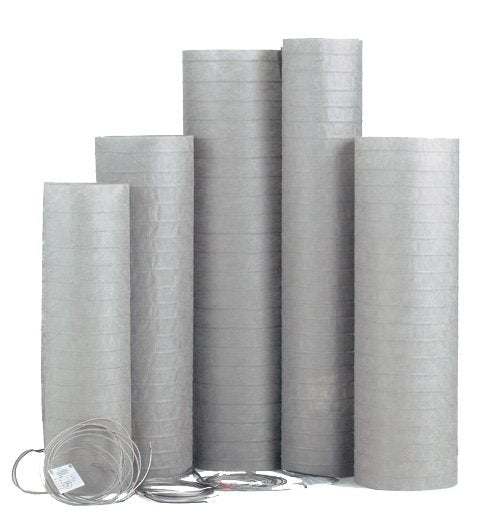

xNuheat standard size pre-built floor heat mats come ready to fit the room and will keep almost any flooring at a warm and comfortable temperature that you set on the Nuheat thermostat control.
You can use more than one Nuheat mat combined to fit any room size or shape, up to the amp limit of the thermostat (150 SF for 120v / 300 SF for 240v Mats). All Mats connect to the Thermostat, not to each other.
Nuheat mats are like electric blankets - you choose the size or sizes to cover your desired floor area - or ask for our expert assistance at NO OBLIGATION. The mats cannot be cut or altered, so be sure to choose the right size. We can help with that!
Instructions
xInstruction manual link:
Nuheat Standard Mat Installation Manual
Indoor / Outdoor: INTERIOR floor heating application only. Embedded in thinset mortar only.
Install Steps:
Nuheat mats are squares and rectangles in over 120 sizes and will fit any room regardless of shape or size. When installing your floor, the heating mats are set in a thin spread of mortar (the same bonding materials used to lay your tile floor). Once your subfloor is prepared, and you have installed the Nuheat mat, apply another layer of thinset or mortar, lay your tile as usual and make the final connection to the Nuheat Thermostat control.
Laminate & Engineered Hardwood: simply install the Nuheat mat as above. Next, cover the Nuheat mat with at least 1/4 inch mortar or floor leveling cement. Once the mortar has cured, install your floor according to the flooring manufacturer's instructions.
Minimum Installation Temperature: 50° Degrees F / 10° Degrees C
Maximum Circuit Load: 15 Amps
Maximum Circuit Overload Protection: 20 A Breaker.
Shower Installation: Yes, can be installed in a tiled shower.
Trowel Size recommended: Minimum 3/8" x 1/4". Works for most ceramic tile; verify with tile/mortar manufacturer.
Distance from Toilet: Install 4-6" away from the toilet drain wax ring. It can be under the front of toilet - Approximately 20" from wall.
Specification
x| UPC | 620713000946 |
|---|---|
| Heating Power Output Total | 1312 BTU total |
| Heating Power Output per Hour (BTU) | 41 BTU per Sq Ft/Hour |
| Ohms Reading (resistance value) | 143 - 165 ohms |
| Power Lead Wire Gauge | 18 AWG |
| Power Lead Length | 10' |
| Power Lead Type | TEW Wire with Stainless Steel ground braid rated to 105 C and 300v max. |
| Thickness | Mat is .083, total is 1/8" with thinset underneath. |
| Voltage | 240 VAC |
| Wattage per SF | 12 |
| Spacing of Heating Wire | 2.0" |
| Heated Area Size Covered | 32 |
More Details
x| Brand Name | Nuheat |
|---|---|
| Safety Listing | UI (US) 1693; UL (CAN/CSA) C22.2 #217; NEC Article 424 Floor Warming Systems |
| Length of Heated Area (ft) | 4' |
| Length of Heated Area (in) | 48" |
| Warranty from Manufacturer | 25 year warranty |
| What's In The Box | Nuheat Mat, Complete instructions. Installation videos online. |
| Amp Draw | 1.6 |
| Wire Construction | Copper/Copper Alloy Heating wire insulated with ETFE and surrounded with protective Stainless steel ground shield. |
| Total Watts | 384 watts |
| Size in Feet | 8' x 4' (8x4 feet) |
| Size in Inches | 96" x 48" (96x48 inches) |
| Size in Meters | 2.44m x 1.22m (2.44x1.22 meters) |
