The Nuheat Mesh floor heating system heats bathrooms, showers, kitchens, entryways and other living areas when using Tile, Stone, Laminate or Engineered wood floors.

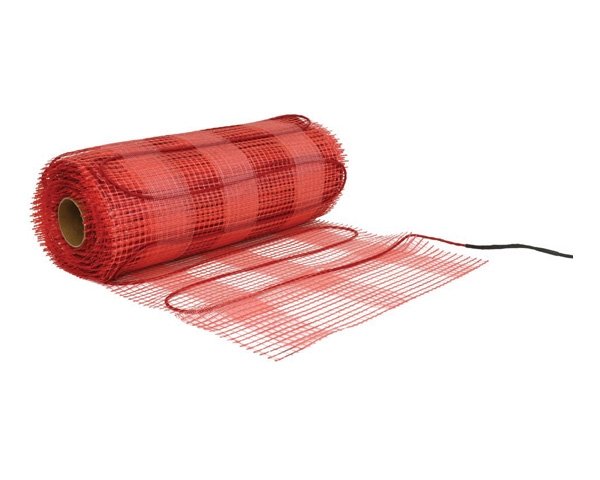

Nuheat Mesh is easy-to-install and can be customized on site to fit your room; simply cut and turn the mat to fit. The fiberglass mesh holds the heating cable securely and is coated with an adhesive which grips the subfloor surface eliminating the need for tape or staples to hold it in place while installing. Providing 12 Watts per square foot, the Heating cable’s design is durable; 2 wires surrounded by a grounding mesh and covered with a PVC outer jacket, with a thin and flexible power lead 10 Ft long (118”) pre-attached.
There are 32 sizes in 120 & 240V - select the Square Footage needed to heat your floor & place the mat wherever you want warmth; remember, no mesh mat means no heat.
Nuheat Mesh Mat Installation Manual
Indoor / OutdoorINTERIOR floor heating application only. Embedded in mortar or self-leveling concrete only.
50°F / 10°C
15 A
Maximum Circuit Overload Protection20 A breaker
Shower InstallationYes, can be installed in a tiled shower. UL listed, verify local code.
Trowel Size recommendedMinimum 3/8 x 1/4 in. Dependent on tile size - verify with tile/mortar manufacturer
Distance from ToiletInstall 4 - 6 inches away from wax ring; can be under front of toilet. Approx 20 inches from wall
UPC | 715629008343 |
---|---|
Heating Power Output Total | 1025 |
Heating Power Output per Hour (BTU) | 41 BTU/h/ft2 |
Ohms Reading (resistance value) | 46-53 ohms |
Power Lead Wire Gauge | 16-18 AWG |
Power Lead Length | 10 ft [3 m] |
Power Lead Type | Thin, PVC coated 2-wire + metal grounding mesh single point connection at corner of mat. No return wire like inferior products. |
Thickness | 3/16 in [0.188 in] |
Voltage | 120 VAC |
Wattage per SF | 12 |
Spacing of Heating Wire | 3 in [80 mm] |
Heated Area Size Covered | 25 |
Brand Name | Nuheat |
---|---|
Safety Listing | UL (Underwriters Laboratory) listed for U.S. and Canada |
Length of Heated Area (ft) | 15 ft |
Length of Heated Area (in) | 180 in |
Warranty from Manufacturer | 25 year warranty |
What's In The Box | Mesh mat and detailed installation manual (install videos online) |
Amp Draw | 2.5 |
Wire Construction | 2-wire, grounded, twisted pair heating wire insulated and surrounded with braided metal ground shield |
Total Watts | 300 |
Why Helps | Nuheat Mesh=Zero EMF (Electro Magentic Field) due to dual-wire twisted pair design |
Size in Feet | 1.66 x 15 ft |
Size in Inches | 20 x 180 in |
Size in Meters | 0.5 x 4.57 m |
