Nuheat Shower Mat · 32" x 32" (120V)
Nuheat Shower Mat · 32" x 32" (120V)

Nuheat Shower Mat · 32" x 32" (120V)

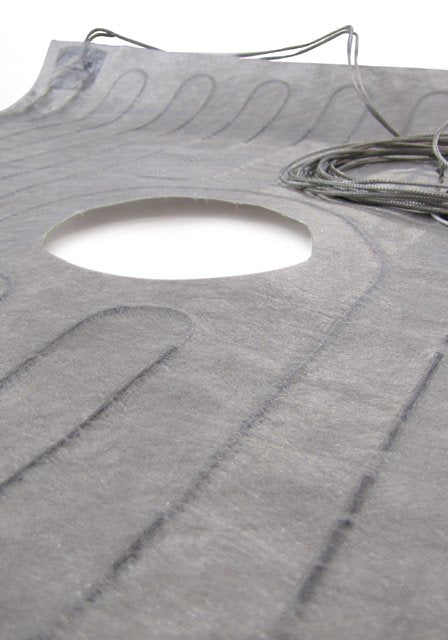

Nuheat F032032-S Shower Heating Mat 32" x 32" with 5" hole in center warms 7.1 Sq Ft, 0.7 amps,120v. This special size is pre-built for a shower floor with extra long 22 Ft. power lead and a center hole 5" in diameter to be centered on the shower drain.
Vendor: nVent
SKU: F032032-S
CA$210.83
CA$248.04
CA$210.83
Description
Description
x

Nuheat F032032-S Shower Heating Mat 32' x 32' with 5' hole in center warms 7.1 Sq Ft, 0.7 amps,120v.

This special size is pre-built for a shower floor with extra long 22 Ft. power lead and a center hole 5" in diameter to be centered on the shower drain

Nuheat standard size pre-built floor heat mats come ready to fit the shower and will keep the shower flooring at a warm and comfortable temperature that you set on the Nuheat thermostat control.

Suitable for mortar bed and pre-built shower bases such as Schluter, Wedi, Tile-redi, etc.

Nuheat mats are like electric blankets.

The mats cannot be cut or altered.

25 year warranty

Instructions
Instructions
x

Instruction manual link:
Nuheat F032032-S Shower Mat 32"X32" 120V Installation Manual

Indoor / Outdoor: INTERIOR floor heating application only. Embedded in mortar only.

Install Steps:

Nuheat mats are squares and rectangles in over 120 sizes and will fit any room regardless of shape or size. When installing your floor, the heating mats are set in a thin spread of mortar (the same bonding materials used to lay your tile floor). Once your subfloor is prepared, and you have installed the Nuheat mat, apply another layer of thinset or mortar, lay your tile as usual and make the final connection to the Nuheat Thermostat control.

Laminate & Engineered Hardwood: simply install the Nuheat mat as above. Next, cover the Nuheat mat with at least 1/4 inch mortar or floor leveling cement. Once the mortar has cured, install your floor according to the flooring manufacturer's instructions.

Maximum Circuit Load: 15 Amps

Maximum Circuit Overload Protection: 20 A Breaker.

Specification
Specification
x
UPC 620713001509
Heating Power Output Total 300 BTU total
Heating Power Output per Hour (BTU) 41 BTU per Sq Ft/Hour
Voltage 120 VAC
Wattage per SF 12
Spacing of Heating Wire 2.0"
Heated Area Size Covered 7.1
More Details
More Details
x
Brand Name Nuheat
Length of Heated Area (ft) 2.25'
Length of Heated Area (in) 27"
Warranty from Manufacturer 25 year warranty
What's In The Box Nuheat Mat, Complete instructions. Installation videos online.
Amp Draw 0.7
Wire Construction Copper/Copper Alloy Heating wire insulated with ETFE and surrounded with protective Stainless steel ground shield.
Total Watts 88 watts
Size in Feet 2.7' x 2.7' (2.7x2.7 feet)
Size in Inches 32" x 32" (32x32 inches)
