ProMelt · 20 Square Foot Snow Melting Cable (208V)

ProMelt · 20 Square Foot Snow Melting Cable (208V)

ProMelt 20 Sq Ft 208V Snow Melting Cable, Model: SC50208020, MPN: 81011416 Warranty: 10 year warranty.
Vendor: Watts Radiant
SKU: SC50208020
CA$314.53
CA$370.03
CA$314.53
Description
Description
x

ProMelt electric radiant snow melting cables are the most versatile and lowest cost option for snow melting installation any size, any shape - quickly providing electrically heated walkways and driveways. Cables are ideal for steps, curved or angled areas. Cables can be used for simple rectangular areas too, but mats install faster and easier in those situations.

Environmentally friendly snow and ice removal in the worst conditions is possible without using salt or hazardous chemicals. ProMelt provides energy efficiency and easy installation.

ProMelt heated snow melting cables are manufactured by SunTouch Watts Radiant (pioneers of indoor radiant heat). You choose your configuration and secure to rebar/mesh or using our Cable Strap on a base surface; maintaining the proper and consistent spacing of cables is your job. Larger spacing means less heat but more coverage per cable.

Cables cost 10-15% less than mats and give you layout and heat output options since you control the spacing and determine the layout. Consider ProMelt Mats for a quicker and easier installation (the spacing is already done for you) for just a few dollars more. (See Specifications)

ProMelt is an effective, reliable and invisible snow melting system that will serve you for many years. Projects of 350 SF or less require cables and a snow sensor-controller and are very affordable and convenient.

ProMelt Snow Melting Benefits:

  1. ProMelt cables provide versatility and allow you to control the Watts per Sq Foot between 38 and 50.
  2. Automatically activates only when needed means your driveway and sidewalks stay clear and you never forget to turn the system off.
  3. No plowing or scraping means your walkway and driveway look better and last longer
  4. Maintenance Free permanent installation. Not like Hydronic systems (water) with pumps, boilers, etc
  5. Increase safety and reduce liability with ProMelt
  6. No hazardous chemicals to damage your landscaping or the environment
  7. No waiting for the plow or shovel to arrive - Dependable automatic snow sensor once moisture and temperature conditions are met activates ProMelt.
  8. Save Money - Eliminate snow removal labor costs
  9. The best construction using premium materials means ProMelt is built to last
  10. Increase the value of your home with an automatic ProMelt System
Instructions
Instructions
x

Instruction manual link:
Promelt SC50208020 20 Sq Ft 208V Snow Melting Cable Installation Manual

Minimum Installation Temperature: 40°F (4.5°C)

Maximum Circuit Load: 30 or 50 Amps @ 240v, depending on controls chosen

Maximum Circuit Overload Protection: 70 A Breaker.

Specification
Specification
x
UPC 840213099800
Heating Power Output Total 3400 BTU total
Heating Power Output per Hour (BTU) 170 BTU per Sq Ft/Hour
EMF (Electro Magnetic Field) Yes. Verified by Independent Testing Laboratory as ultra low.
Ohms Reading (resistance value) 36 - 46 ohms
Power Lead Wire Gauge 14 AWG
Power Lead Length 20 Feet
Power Lead Type Armored, NEC color code, Single point connection at 1 corner of mat. No return wire like inferior products
Thickness 1/4" in. inch
Voltage 208 VAC
Wattage per SF 50
Spacing of Heating Wire 3" - 3.5" - 4" on center
More Details
More Details
x
Brand Name ProMelt
Safety Listing ETL Listed for U.S. and Canada under UL (Underwriters Laboratory) 515, IEEE 515.1, and CAN/USA C22.2 No. 130-03 : Listing file number: 3151992
Warranty from Manufacturer 10 year warranty backed by USA Manufacturer since 1873
Spacing between runs 1 3
Spacing between runs 2 3.5
BTUs/SF/Hr 1 170
Watts Per SF 1 50
Watts Per SF 2 44

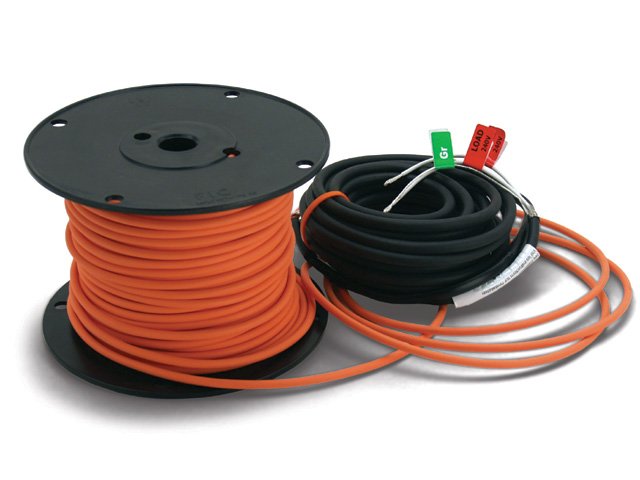

What's In The Box ProMelt Cable in Easy to dispense spool. Detailed Installation Manual. DVD on request
Amp Draw 4.8
Wire Construction ETFE Fluoropolymer, Braided copper ground plane, Foil shield and Outside polyurethane jacket
Total Watts 1000 watts @ 3" inch spacing
Why Helps

ProMelt Cables provide the most flexible and low cost installation than any snow melting system in 3 easy steps once you have read all instructions, planned the electrical details, and prepared your jobsite:

  1. Determine cable spacing and layout we suggest using a spacer like a piece of wood
  2. Unwind cable(s) to fit any shape area and around obstacles or up steps
  3. Secure the cable onto the prepared base surface using CableStrap or cable ties to wire mesh/rebar

The ProMelt radiant heating cables are built tough for Permanent installation within virtually any surface to provide efficient melting of snow and ice automatically. They must be completely embedded and at least 1.25 inches below the top of the new layer.

  • New Concrete Surfaces install in top 2 inches secured to rebar or wire mesh on supports/chairs
  • New Asphalt on top of base layer. ProMelt's polyurethane outer insulation layer withstands 300 Degrees F
  • Pavers or brick set in compacted sand beds or in mortar
  • Stone or tile set in thickset mortar. Building Code requires all outdoor systems to be 1.25 inches below the top of the new surface
  • Not for use in gravel or dirt - must be embedded as described above
