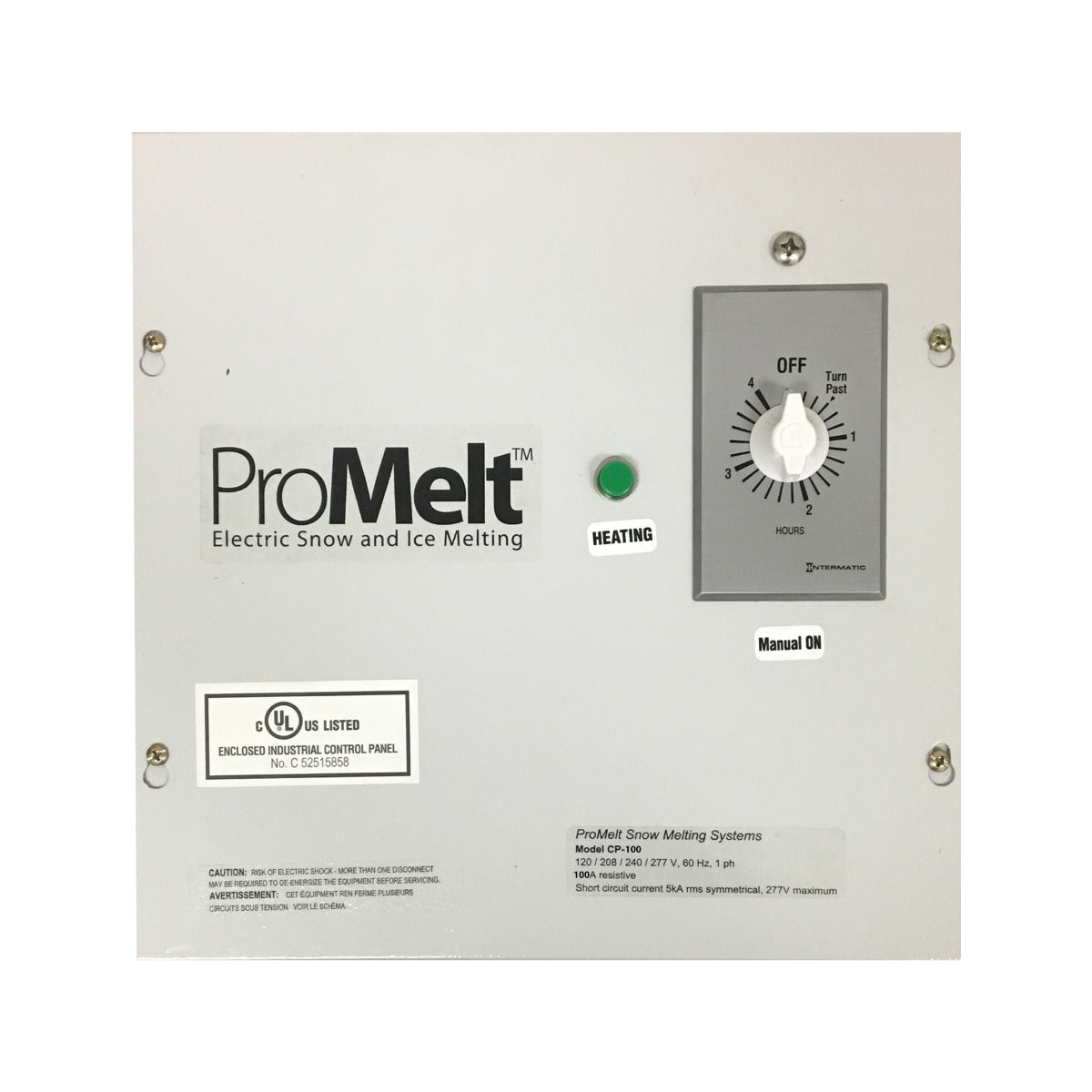

ProMelt CP-100 Snow Melt Control Panel

Vendor: Watts Radiant
SKU: 300100
Subtotal: CA$857.41

ProMelt ContactorPro™ 100 amp panels for 120/208/240/277 VAC

ProMelt Contactor Pro panels provide industry leading automatic snow melting and deicing control. This turn-key solution is all you need for activating larger systems of ProMelt Mats and Cables. Connect your choice of an Aerial or surface mounted snow sensor kit PM-L2 (Aerial) or PM-L3 (Surface slab mount). The CP panels are offered in three sizes: 50 Amps, 100 Amps, and 200 Amps. 120, 208, 240, or 277 VAC is supplied to this panel and an included 24V Class 2 transformer allows easy connection to the snow sensor.

Every Contactor Pro panel comes complete with “system on” indicator light, manual override via 4-hr dial timer, and simple 24V wire terminal connections to the snow sensor. A new feature allows any CP series panel to be connected to any other CP series panel as an expansion panel. i.e. you can connect 2 panels together for added capacity using 1 snow sensor.

The CP-100 has two 50-amp contactors, the CP-50 has one 50-amp contactor, and the CP-200 has four 50-amp contactors. Systems should be designed to connect one or more ProMelt Cables or Mats in combinations not to exceed the capacity of individual 50-amp contactors.

  • Completely prewired and numbered connections for easy installation
  • NEMA Type 1 for mounting indoors on a wall with knockouts for conduit
  • Economical For all Snow Melting systems
  • Pre-Built in Watts Radiant’s factory for quality and process control
  • 100 Amp Capacity (Two 50 Amp Contactors)
  • Aerial Mounted Automatic Snow Switch (sold separately) easily connects to CP
  • Wired Remote Operation included with Sensor Kit
  • 'System On' Indicator light
  • 4 Hour Timer for manual preheating if needed
  • Heavy duty metal enclosure measures: 12" x 12" x 4" (or 12" x 12" x 5" considering the dial)
