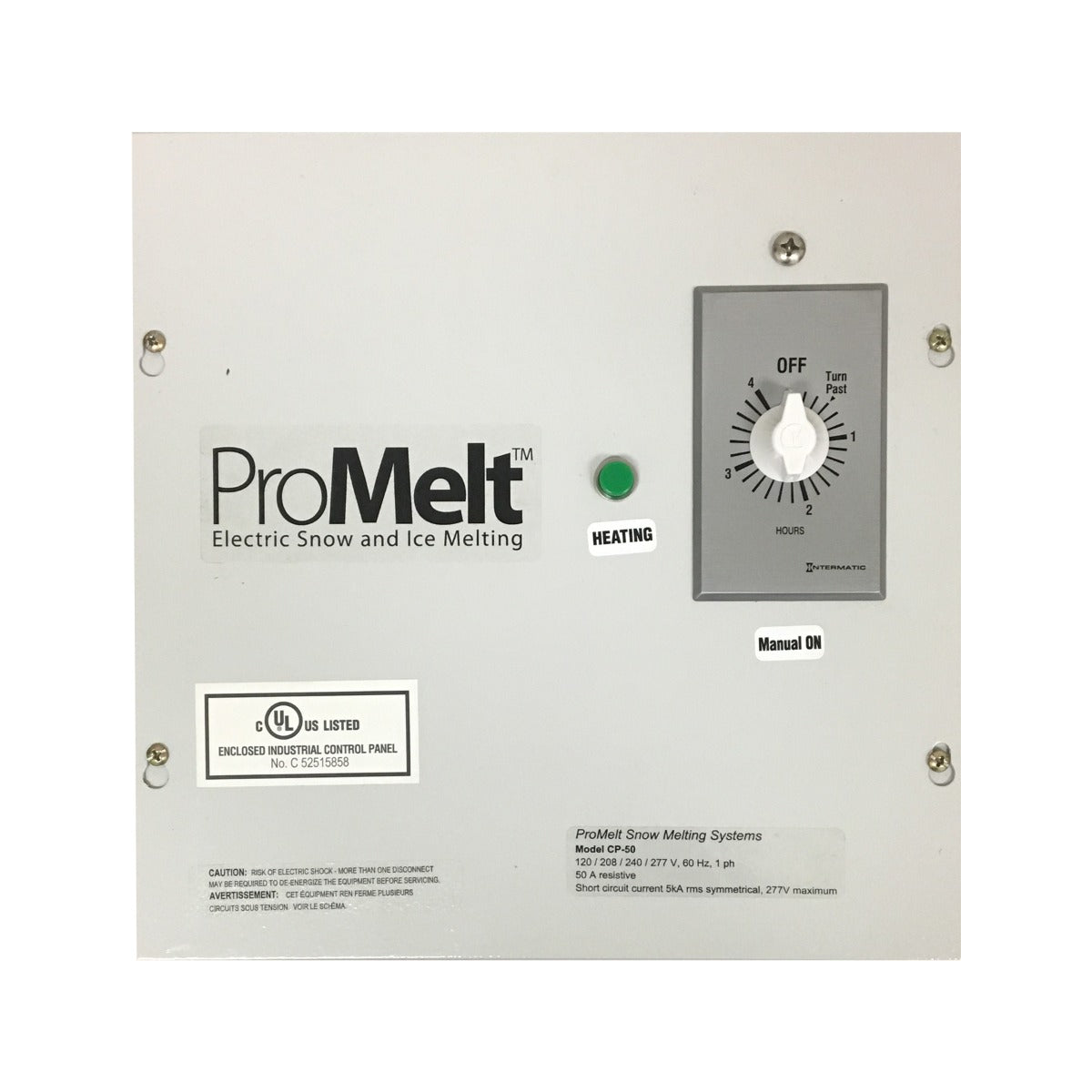

ProMelt CP-50 Snow Melt Control Panel

ProMelt ContactorPro™ 50 amp panels for 120/208/240/277 VAC

ProMelt Contactor Pro panels provide industry leading automatic snow melting and deicing control. This turn-key solution is all you need for activating larger systems of ProMelt Mats and Cables. Connect your choice of an Aerial or surface mounted snow sensor kit PM-L2 (Aerial) or PM-L3 (Surface slab mount). The CP panels are offered in three sizes: 50 Amps, 100 Amps, and 200 Amps. 120, 208, 240, or 277 VAC is supplied to this panel and an included 24V Class 2 transformer allows easy connection to the snow sensor.

Every Contactor Pro panel comes complete with 'system on' indicator light, manual override via 4-hr dial timer, and simple 24V wire terminal connections to the snow sensor. A new feature allows any CP series panel to be connected to any other CP series panel as an expansion panel. i.e. you can connect 2 panels together for added capacity using 1 snow sensor.

The CP-50 has one 50-amp contactor, the CP-100 has two 50-amp contactors, and the CP-200 has four 50-amp contactors. Systems should be designed to connect one or more ProMelt Cables or Mats in combinations not to exceed the capacity of individual 50-amp contactors.

• Completely prewired and numbered connections for easy installation
• NEMA Type 1 for mounting indoors on a wall with knockouts for conduit
• Economical For all Snow Melting systems
• Pre-Built in Watts Radiant’s factory for quality and process control
• 50 Amp Capacity (One 50 Amp Contactor)
• Aerial Mounted Automatic Snow Switch (sold separately) easily connects to CP
• Wired Remote Operation included with Sensor Kit
• 'System On' Indicator light
• 4 Hour Timer for manual preheating if needed
• Heavy duty metal enclosure measures: 12" x 12" x 4" (or 12" x 12" x 5" considering the dial)
