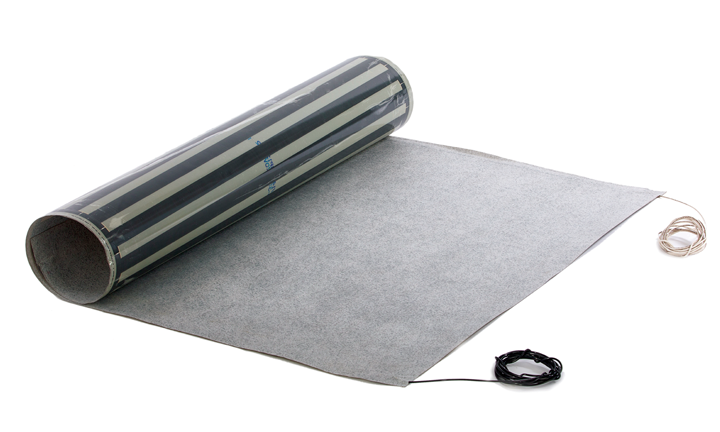

QuietWarmth Peel & Stick for Tile & Glue Down Floors 1.5' x 5' (120V)

Step #1

Step #2

Step #3

Sketch Your Layout
Sketch your layout and figure out the area to be warmed. Use the above sketch as an example.  ^{(Click to enlarge)}

Allow at least 6 in. clearance between the edge of the mats and the wall.

Ensure no cables/wires cross over any of your heating mats.

Locate Your Thermostat
Thermostats are usually located near the power leads. However, they can be put almost anywhere, because the power leads and the sensor wire can be routed to electrical junction boxes and extended to a location outside the heated room (such as a utility room or basement).

Location of the thermostat should be approximately 60” (152 cm) above the floor on an inside wall, near the center of the room to allow the connection leads to reach.  A 3" deep box is recommended for the thermostat.

With the peelable release liner still on, position all the mats into place. Make sure the leads are run within reach of the wall of the room where the thermostat/junction box will be located and that there are no obstructions or floor penetrations in the way.

Be sure to leave clearance to walls or partitions at the connector end for wiring and final connections.

When all the mats are in proper position, peel & stick your mats to the subfloor starting with the end
with the connections attached using your hand to smooth down the exposed adhesive portion of the mat avoiding air bubbles.

For adjacent mats, follow the same procedure starting with alignment of the side by side mats in a butt joint fashion. Do not overlap mats.

As the mats are installed, locate the thermostat sensor wire/probe. Affix into position with a small amount of tape. The sensor should extend approximately 6” to 12” from wall adjacent to the mat shown. Be careful not to put your sensor near other heating sources such as a heating duct below the floor.

Follow the "Electrical Installation" instructions in the manual to complete the wiring portion of your QuietWarmth install.

Tile Directly Overtop
Follow your floor covering manufacturer's instructions for installation over a radiant system.

These install steps are meant as a guide and not a subsitution for the QuietWarmth installation manual linked above.  Please read it in it's entirety before beginning your installation.
