This Schluter DITRA-HEAT KIT contains everything you need to install a complete floor heating system.
Vendor: Schluter-Systems
SKU: DHEKRT120018
CA$583.17
CA$641.54
CA$583.17
Description
Description
x

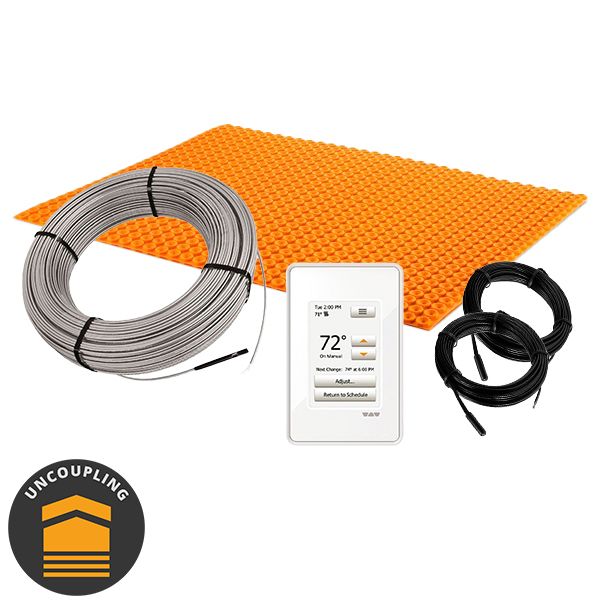

This 120V DITRA-HEAT Kit contains everything you need to install a complete floor heating system under tile or stone:

  • 1 Spool of DITRA-HEAT Cable (DHEHK12011) - Warms 11 sq ft
  • 1 DHERT102/BW Programmable Thermostat (touchscreen)
  • 2 Sensor Wires - one in each the thermostat & heating cable box
  • 3 DITRA-HEAT Uncoupling Membrane Sheets - Covers 25 sq ft

DITRA-HEAT combines the flexibility of loose heating cables with the ease of installation of mat systems.

Cables easily snap into place wherever heat is desired, which significantly reduces installation time and effort.

Since this eliminates any height differences, simply place self-leveler over the top for a perfectly level flooring installation.

Revolutionary DITRA-HEAT membrane by Schluter-Systems integrates electric floor warming with the functions associated with DITRA: uncoupling, waterproofing, vapor management and support which eliminated common causes of cracking ensuring a long lasting installation under tile or stone.

Note: Product shown is a kit put together by Authorized Distributor Warm Your Floor containing individual genuine Schluter® products.

Instructions
Instructions
x

Instruction manual link:
DITRA-HEAT Installation Handbook

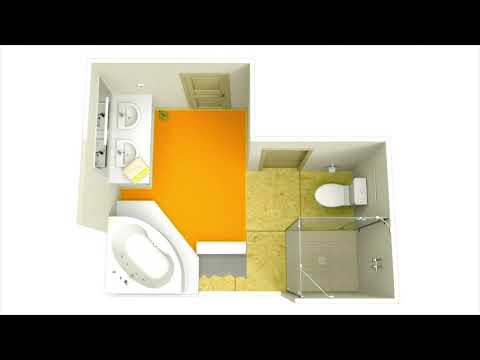

Video:

Indoor / Outdoor: For INDOOR USE ONLY

Install Steps:

Ensure your sub floor is clean, even, and load bearing. Bond inhibiting surfaces must be removed prior to the application of DITRA-HEAT. For complete installation guidelines and warranty criteria, please refer to the included instruction manual or at the link displayed above.

Note: Type, thickness, & format of the tile/stone covering must be at least 2" x 2" (5 x 5 cm).

Maximum Circuit Load: 15 amps

Distance from Toilet: Minimum of 7" from the centerline of the toilet drain

Specification
Specification
x
Manufacturer Schluter-Systems
Thickness ~ 0.25 inches
Wattage per SF 12.75
Spacing of Heating Wire 3-stud and 3-2-3-2-stud spacing. (Tension loop can be made around a single stud if necessary. See installation handbook for details.)
More Details
More Details
x
Brand Name DITRA-HEAT
Safety Listing UL Listed
Warranty from Manufacturer 10-25 year limited manufacturer warranty
Spacing between runs 1 3 stud spacing
Spacing between runs 2 3-2-3-2 stud spacing
BTUs/SF/Hr 1 43.2
Watts Per SF 1 12.7
Watts Per SF 2 15.2
Acceptable Floor Coverings Tile and Stone, Engineered Wood, floating or glued-down, Laminate, Luxury Vinyl Tile & Plank (LVT/LVP), Vinyl,WPC or Wood Plastic Composite core flooring, SPC or Stone Plastic Composite core flooring.
