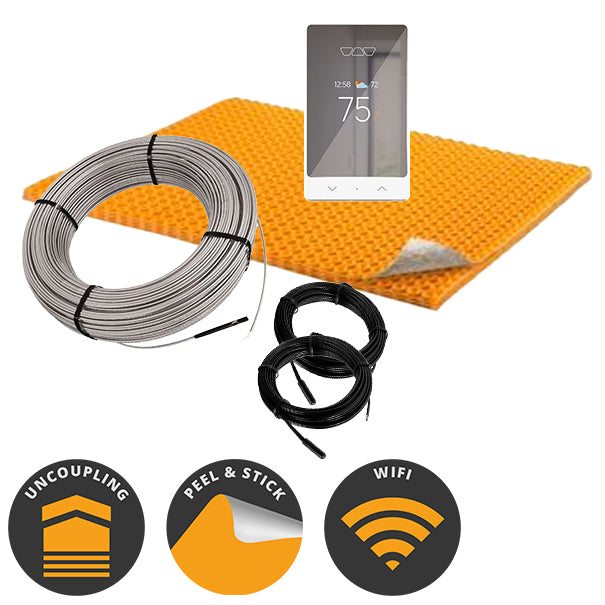

This 120V DITRA-HEAT Kit contains everything you need to install a complete floor heating system:
Schluter®-DITRA-HEAT-PS is a peel-and-stick membrane that features a pressure-sensitive adhesive (PSA) to bond the membrane to the substrate, eliminating the need for thin-set mortar. Quick and easy to install, DITRA-HEAT-PS integrates customizable, comfortable electric floor warming with the same functions associated with DITRA-HEAT: uncoupling, waterproofing*, vapor management, and load support to ensure a long-lasting tile installation.
Membrane installation is even easier now without thin-set under the mat using Peel & Stick. To install, peel the release film off DITRA-HEAT-PS and place the membrane on the substrate. It can be lifted and re-positioned providing no pressure has been applied to it. However, once pressure has been applied the adhesive sticks the membrane firmly to the substrate. The heating cables can be installed immediately after adhering the membrane to the subfloor.
Note: Product shown is a kit put together by Authorized Distributor Warm Your Floor containing individual genuine Schluter® products.
Ensure your sub floor is clean, even, and load bearing. Bond inhibiting surfaces must be removed prior to the application of DITRA-HEAT. For complete installation guidelines and warranty criteria, please refer to the included instruction manual or at the link displayed above.
Note: Type, thickness, and format of the tile or stone surface covering must be at least 2" x 2" (5 cm x 5 cm).
Manufacturer | Schluter-Systems |
---|---|
Thickness | ~ 0.25 inches |
Wattage per SF | 12.75 |
Spacing of Heating Wire | 3-stud and 3-2-3-2-stud spacing. (Tension loop can be made around a single stud if necessary. See installation handbook for details.) |
Brand Name | DITRA-HEAT |
---|---|
Safety Listing | UL Listed |
Warranty from Manufacturer | 10-25 year limited manufacturer warranty |
Spacing between runs 1 | 3 stud spacing |
Spacing between runs 2 | 3-2-3-2 stud spacing |
BTUs/SF/Hr 1 | 43.2 |
Watts Per SF 1 | 12.7 |
Watts Per SF 2 | 15.2 |
Acceptable Floor Coverings | Tile and Stone, Engineered Wood, floating or glued-down, Laminate, Luxury Vinyl Tile & Plank (LVT/LVP), Vinyl,WPC or Wood Plastic Composite core flooring, SPC or Stone Plastic Composite core flooring. |
