SunTouch SunStat Core NonProgrammable Thermostat

SunTouch SunStat Core NonProgrammable Thermostat

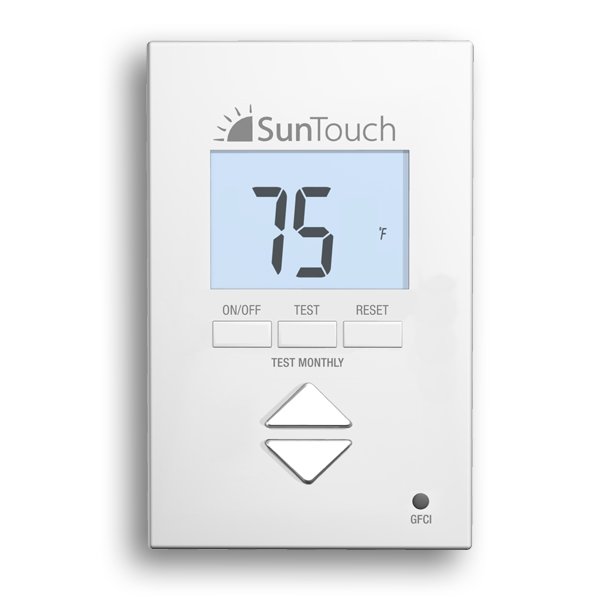

The SunStat 500825 is a Basic Non-Programmable Thermostat used to control the floor temperature of a SunTouch electric floor heating system. It has push button controls, built-in Grade-A GFCI, and a 15 amp relay that allows it to control up to a 150 sq ft 120V system or a 300 sq ft 240V system.
Vendor: Watts Radiant
SKU: 500825-SB
CA$164.25
CA$219.00
CA$164.25
Description
Description
x

Features and Benefits:

  • Dual-voltage 120/240 VAC
  • Built-in GFCI   for safety
  • Built-in 15-amp relay   controls up to 150 sq. ft. (1800 watts) at 120 V, or 300 sq. ft. (3600 watts) at 240 V
  • Drives as many as 10 SunStat® Relay III units  to control up to 1,650 sq. ft. at 120 V, or 3,300 sq. ft. at 240 V
  • Floor and air sensing modes
  • Automatically adjusts for daylight saving time  so your time will always be accurate
  • Energy Use monitor  shows the hours of system operation
  • 3-year manufacturer warranty
Instructions
Instructions
x

Instruction manual link:
SunTouch Core - Installation & Operation Manual

Specification
Specification
x
UPC 840213207014
More Details
More Details
x
Brand Name SunTouch
Safety Listing Safety Listed in USA & Canada : UL 873, UL 943 & CSA C22.2 No. 24, CSA/CAN C22.2 No.144, ETL Control No. 3037530
Warranty from Manufacturer 3 yr
What's In The Box Non-programmable thermostat, sensor wire, wire nuts, screwdriver, mounting screws
Size in Inches 4-5/8" H x 3" W
