The electric mats roll out quickly under new installations of concrete, asphalt or pavers to prevent the accumulation of ice and snow and are hard-wired to a moisture and temperature sensing control for automated activation. Heating stairs, walkways and driveways is made simple and safe with Warmup.

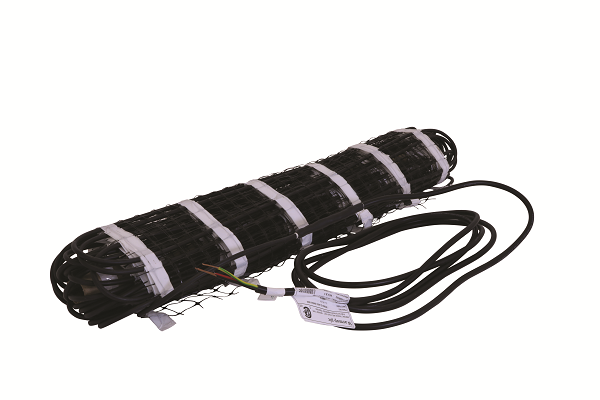

Mats are the best choice for straight runs, walkways and tire-tracks since the wire is pre-spaced and attached to a mesh in 2 Ft and 3 Ft widths for fastest installation. Secure the mats in place, run the 16 Ft power leads to the junction box(es), and connect to the controller/power. At 50 Watts per Sq Ft, you need 0.20 amps per Sq Ft; each 200 Sq Ft is a load of 40 Amps requiring a 50 A breaker at 240V.
If you have limited power available or a budget restriction, you have options; heat a path down the middle of a walkway or tire tracks on a driveway to economize. We are always available to help design the ideal system for you.
We have solutions for residential & commercial projects of all sizes and types in voltages 240 & 480, plus 208 & 277 V are supported by using 240V mats and de-rating or up-rating. i.e. a 240v mat (50 W/SF) operated at 208V provides 38 W/SF which is enough power in most climates. There are also 3-phase wiring possibilities.
The ideal Warmup electric heated driveway system is designed operate automatically. As it monitors moisture, temperature, and precipitation, the controller will turn the system on to heat the surface just above freezing. We offer simple sensor-controllers for small systems as well as the Warmup Wi-Fi WSM-252W which is activated by the weather forecast to preheat the slab before the snowfall.
Warmup Snow Melting Mat & Cable Install Manual
Video Indoor / OutdoorOutdoor Installation Only
UPC | 856604000386 |
---|---|
Heating Power Output Total | 5100 |
Heating Power Output per Hour (BTU) | 170 BTUs/SF |
EMF (Electro Magnetic Field) | Dual Conductor Cable means virtually zero EMF |
Ohms Reading (resistance value) | 38.4 |
Power Lead Wire Gauge | 14 Awg 3-WIRE |
Power Lead Length | 16.4 Ft Long |
Power Lead Type | Insulated, Grounded, Single point connection at 1 corner of mat. |
Thickness | 1/4" |
Voltage | 240V |
Wattage per SF | 50 Watts per Sq Ft |
Spacing of Heating Wire | 3" Spacing |
Heated Area Size Covered | 30 |
Brand Name | Warmup |
---|---|
Safety Listing | CSA Listed to UL standards for U.S. and Canada |
Length of Heated Area (ft) | 15' L |
Warranty from Manufacturer | 10 Year Warranty |
Amp Draw | 6.3 |
Wire Construction | Energy efficient twin-conductor heating cable with superior insulation & jacket with high dielectric strength |
Total Watts | 1500 |
Size in Feet | 2′ x 15′ |
