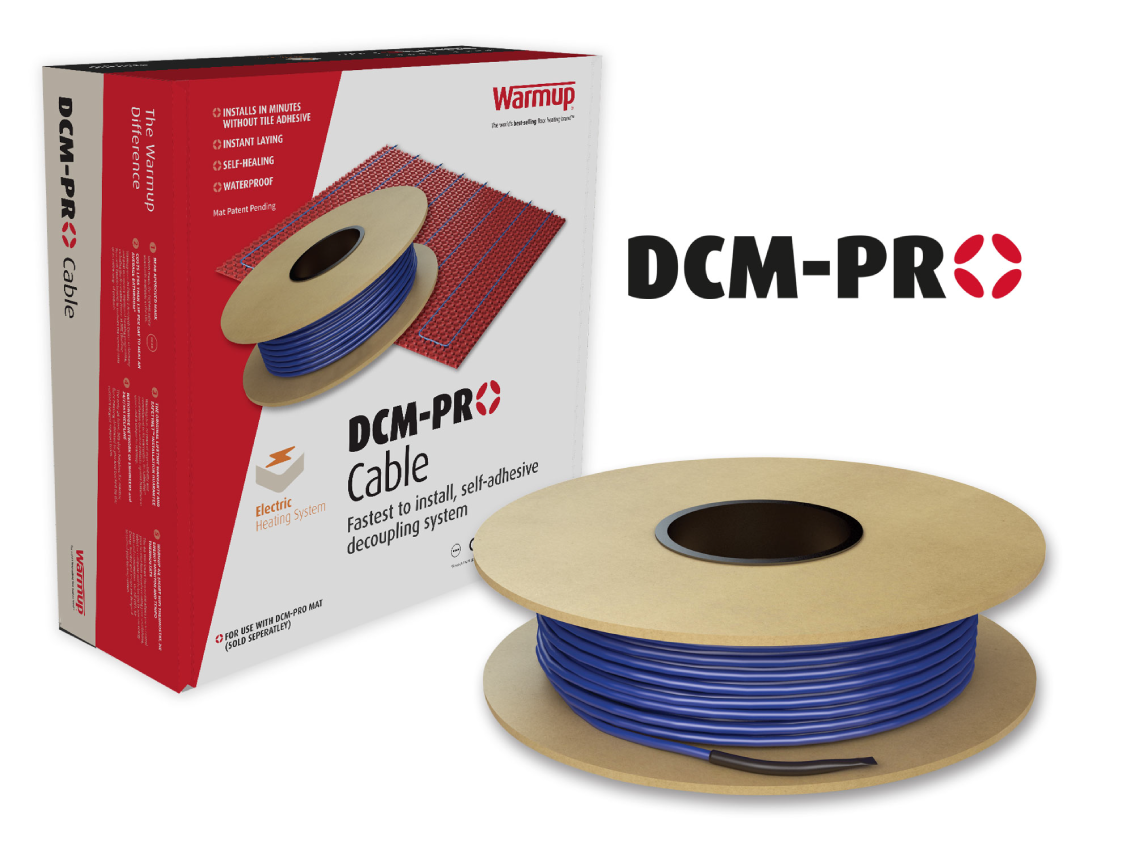

Warmup cable has the best warranty, the most options for installation, the highest heat output and fits in all membranes. Its ETFE inner jacket allows for high heat output while its PVC outer sleeve protects for a smooth installation. Dual wire construction means EMF cancellation for safety.
Specifically engineered to work in the first and only peel and stick uncoupling membrane in the world (patent pending), DCM-PRO is the only UL-approved membrane system in North America.
• Choose from the largest size range for flexibility, available in 5 to 250 square-foot sizes and multiple cables can be combined on 1 thermostat
• 120v or 240v cables with a 10 Ft Power lead for use under most flooring
• Quick and easy installation using Uncoupling Membrane or cable spacer strips (sold separately)
• Spacing can be 2-3, 3 or 3-4 Pegs; most installers chose 3 for 13 Watts/SF (4 W linear foot)
• Worry-free 30-Year-Warranty plus the Safety Net Guarantee backed by 24/7/365 Support
• Approved for shower floors and seats; Warmup’s fluoropolymer-insulated cables are approved for shower and wet room installations
• Warmup has over 2 million installations in 60 countries - the world leader!
Warmup DCM PRO Cable & Membrane Manual WYF Current
Video Indoor / OutdoorINTERIOR floor heating application only. Embedded in mortar or self leveler only
Yes, can be installed in a tiled shower. UL listed for "W" wet area, verify local code AHJ first
Distance from ToiletInstall 4-6" away from the toilet drain wax ring. It can be under the front of toilet - Approximately 20" from wall.
UPC | 815846014469 |
---|---|
Heating Power Output Total | 222 |
Heating Power Output per Hour (BTU) | 44 BTU per Sq Ft/Hour |
EMF (Electro Magnetic Field) | Virtually Zero EMF dual-wire elements |
Ohms Reading (resistance value) | 210.4 - 232.6 |
Power Lead Length | 10 Ft (3m) |
Power Lead Type | Jacketed 2 Wire + Ground braid |
Thickness | 3/16" Dia Cable |
Voltage | 120 VAC |
Wattage per SF | 13 W/SF |
Spacing of Heating Wire | 2-3 / 3-3 / 3-4 Pegs |
Heated Area Size Covered | 5 |
Brand Name | Warmup |
---|---|
Safety Listing | UL (Underwriters Laboratory) Listed for USA & Canada |
Warranty from Manufacturer | 30 Yr Warranty + Safety Net |
What's In The Box | Roll of Cable, Manual. NO spacers or membrane |
Amp Draw | 0.54 |
Wire Construction | PVC outer jacket surrounds 2 ETFE insulated copper heating wires, protected by copper grounding braid (85% min) |
Total Watts | 65 |
Acceptable Floor Coverings | Natural Stone,Tile, Laminate, Engineered Woods, Carpet, Vinyl, Linoleum, Solid Hardwood (if you use sleepers) |
