WarmWire Kit · 20 Square Foot Radiant Floor Heating Cable (120V)
WarmWire kit 20 Sq Ft 120V Radiant Floor Heating Cable 3.0, Model: WWKIT120020WD, MPN: 81009482 by Watts Radiant Good for Natural Stone,Tile, Laminate, Engineered Woods, Carpet, Vinyl, Linoleum, Solid Hardwood (if you use sleepers). Warranty: 25 year warranty.
Vendor:
Watts Radiant
SKU:
120020WD-BKIT
- CA$546.20
CA$642.59- CA$546.20
- Unit price
- per
Description
xWarmWire Kits are an affordable alternative to floor heating mats.
Heating cable systems like WarmWire by SunTouch offer increased freedom in your install, allowing you to easily go around seemingly awkward turns & other obstructions such as a toilets, kitchen islands, or floor vents invloved in your layout.

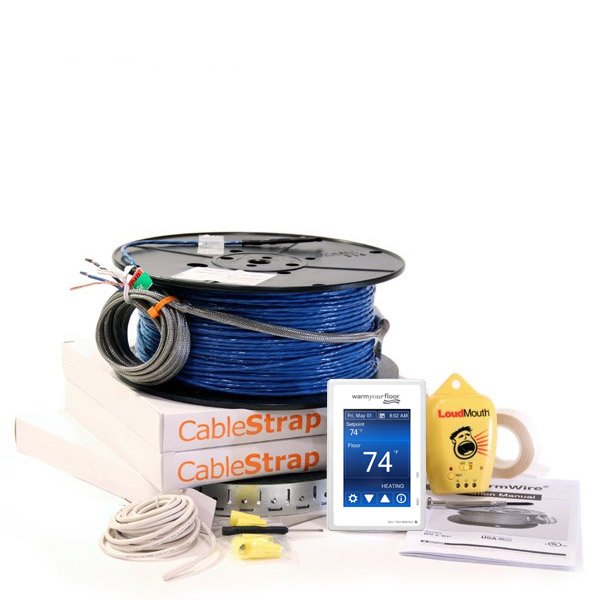

This kit contains the following components:
• SunStat Command Programmable Thermostat
• Spool(s) of WarmWire radiant heating cable
• Roll(s) of CableStrap (for securing cable to subfloor)
• Floor Sensor Wire (10k)
• Wire nuts & miniature screwdrivers
• LoudMouth Installation Monitor/Alarm
• Installation Manual
• Roll of Tape
WarmWire works wonderfully under natural stone, tile, laminate, engineered woods, carpet, vinyl, linoleum, & solid hardwood (if you use sleepers). They are also approved for shower installation where permitted by the local authority having jurisdiction (AHJ).
(Compatible for install at 2 ½, 3, or 3 ½ inch spacing)
Instructions
xInstruction manual link:
WarmWire Cable Installation Manual
Video:
Indoor / Outdoor: INTERIOR floor heating application only. Embedded in mortar or self leveler only
Install Steps:
 |
 |
|
Step 1: Plan your layout and determine the cable direction. Measure about 3" in. inches from the wall, and place strap parallel to the wall. Under toe kick spaces, install the strap 1.5"in. inches to 2" in. inches away from the vanity.
|
Step 2: Cut the strap to length for each side of area to be heated.
|
 |
 |
|
Step 3: Secure the strap to the subfloor using double-sided tape, glue, or fasteners.
|
Step 4: Fill in each section back and forth with cable, spacing the wire 2.5" or 3" in. inches apart. For additional areas, cut and attach the straps accordingly and begin weaving the wire into that area.
|
 |
|
Important: If cables are running greater than 3' or 4'ft. feet across a room, be sure to add another strap to thread through in the center of the area to be heated. |
Minimum Installation Temperature: 50° Degrees F / 10° Degrees C
Power Supply & Wiring
| Mats or Wire | Supply Wire | Breaker | |||
| VAC | total amps | (AWG*) | qty | type | rating |
| 120 | up to 12 amps | 14 | 1 | single pole | 15 or 20 A |
| 120 | up to 15 amps | 12 | 1 | single pole | 20 A |
| 240 | up to 12 amps | 14 | 1 | double pole | 15 or 20 A |
| 240 | up to 15 amps | 12 | 1 | double pole | 20 A |
* Recommended only. Follow local codes for wire gauge size.
Maximum Circuit Load: 15 Amps
Maximum Circuit Overload Protection: 20 A Breaker.
Shower Installation: Yes, can be installed in a tiled shower. UL listed, verify local code.
Trowel Size recommended: Minimum 3/8" x 1/4". Dependent on tile size - verify with tile/mortar manufacturer
Distance from Toilet: Install 4-6" away from the toilet drain wax ring. It can be under the front of toilet - Approximately 20" from wall.
Specification
x| UPC | 840213195458 |
|---|---|
| Heating Power Output Total | 820 BTU total |
| Heating Power Output per Hour (BTU) | 41 BTU per Sq Ft/Hour @ 3" in. inch spacing |
| EMF (Electro Magnetic Field) | Yes. Verified by Independent Testing Laboratory as ultra low. |
| Ohms Reading (resistance value) | 53-66 |
| Power Lead Wire Gauge | 18 AWG |
| Power Lead Length | 10 Feet |
| Power Lead Type | Armored, NEC color code, Single point connection at 1 corner of mat. No return wire like inferior products |
| Thickness | .110" - .132" (nominal) Shorter cables are thinner. |
| Voltage | 120 VAC |
| Wattage per SF | 12 |
| Spacing of Heating Wire | 2.5" - 3" - 3.5" on center |
| Heated Area Size Covered | 20 |
More Details
x| Brand Name | WarmWire |
|---|---|
| Safety Listing | UL (Underwriters Laboratory) Listed for U.S. and Canada under UL 1673 and CAN/CSA C22.2 No. 130-03, File No. E185866 |
| Warranty from Manufacturer | 25 year warranty backed by USA Manufacturer since 1873 |
| What's In The Box | WarmWire Spool(s), Cable Strap(s), SunStat Command Programmable Touch Screen Thermostat, Sensor Wire, LoudMouth, Tape, and Detailed Installation Manual. |
| Amp Draw | 2 |
| Wire Construction | Blue Flexible Polyurethane WaterProof Jacket surrounding 2 ETFE insulated copper heating wires, metal jacket & ground wire drain |
| Total Watts | 240 watts |
| Why Helps | WarmWire = Zero EMFElectromagnetic fields (EMF) are generated by all electrical devices, and the possible dangers of exposure to EMF are still the subject of debate and scientific research. Out of concern for their customers' safety, SunTouch created the first EMF-canceling electric radiant floor heating system in 1993, and to this day they only manufacture and sell floor heating systems that use their patented EMF-canceling design. We provide this EMF information because it is important to some people, not to frighten you or exaggerate any risk like others do. We simply aim to inform you and leave the choice up to you after explaining what we know. Read More Here. |
| Acceptable Floor Coverings | Natural Stone,Tile, Laminate, Engineered Woods, Carpet, Vinyl, Linoleum, Solid Hardwood (if you use sleepers) |
