Vendor: Watts Radiant
SKU: 120045WD-BKIT
CA$711.84
CA$837.46
CA$711.84
Description
Description
x

WarmWire Kits are an affordable alternative to floor heating mats.

Heating cable systems like WarmWire by SunTouch offer increased freedom in your install, allowing you to easily go around seemingly awkward turns & other obstructions such as a toilets, kitchen islands, or floor vents invloved in your layout.

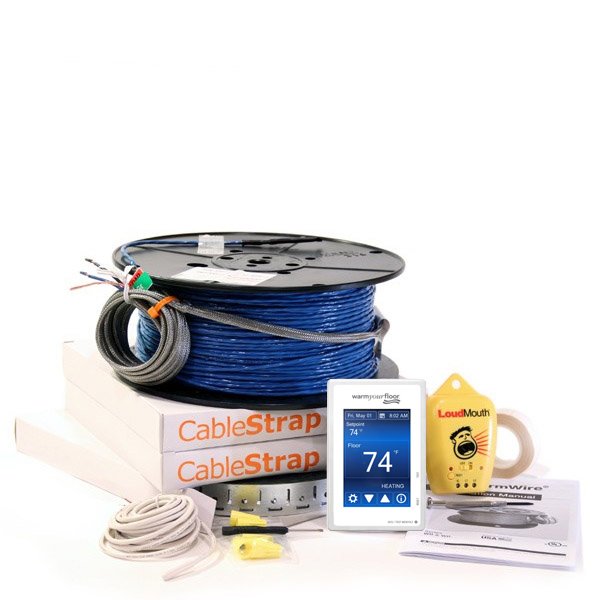

This kit contains the following components:

•  SunStat Command Programmable Thermostat
•  Spool(s) of WarmWire radiant heating cable
•  Roll(s) of CableStrap (for securing cable to subfloor)
•  Floor Sensor Wire (10k)
•  Wire nuts & miniature screwdrivers
•  LoudMouth Installation Monitor/Alarm
•  Installation Manual
•  Roll of Tape

WarmWire works wonderfully under natural stone, tile, laminate, engineered woods, carpet, vinyl, linoleum, & solid hardwood (if you use sleepers).  They are also approved for shower installation where permitted by the local authority having jurisdiction (AHJ).

(Compatible for install at 2 ½, 3, or 3 ½ inch spacing)

Instructions
Instructions
x

Instruction manual link:
WarmWire Cable Installation Manual

Video:

Indoor / Outdoor: INTERIOR floor heating application only. Embedded in mortar or self leveler only

Install Steps:

Step 1:

Plan your layout and determine the cable direction. Measure

about 3" in. inches from the wall, and place strap parallel to

the wall. Under toe kick spaces, install the strap 1.5"in. inches

to 2" in. inches away from the vanity.



Step 2:

Cut the strap to length for each side of area

to be heated.







Step 3:

Secure the strap to the subfloor using double-sided

tape, glue, or fasteners.









Step 4:

Fill in each section back and forth with cable,

spacing the wire 2.5" or 3" in. inches

apart. For additional areas, cut and attach the

straps accordingly and begin weaving the

wire into that area.





 Important:

If cables are running greater than 3' or 4'ft. feet across a room, be sure to add another

strap to thread through in the center of the area to be heated.

Minimum Installation Temperature: 50° Degrees F / 10° Degrees C

Power Supply & Wiring

Mats or WireSupply WireBreaker
VACtotal amps(AWG*)qtytyperating
120up to 12 amps141single pole15 or 20 A
120up to 15 amps121single pole
20 A
240up to 12 amps141double pole15 or 20 A
240up to 15 amps121double pole20 A

* Recommended only. Follow local codes for wire gauge size.

Maximum Circuit Load: 15 Amps

Maximum Circuit Overload Protection: 20 A Breaker.

Shower Installation: Yes, can be installed in a tiled shower. UL listed, verify local code.

Trowel Size recommended: Minimum 3/8" x 1/4". Dependent on tile size - verify with tile/mortar manufacturer

Distance from Toilet: Install 4-6" away from the toilet drain wax ring. It can be under the front of toilet - Approximately 20" from wall.

Specification
Specification
x
UPC 840213195502
Heating Power Output Total 1845 BTU total
Heating Power Output per Hour (BTU) 41 BTU per Sq Ft/Hour @ 3" in. inch spacing
EMF (Electro Magnetic Field) Yes. Verified by Independent Testing Laboratory as ultra low.
Ohms Reading (resistance value) 22-28
Power Lead Wire Gauge 18 AWG
Power Lead Length 10 Feet
Power Lead Type Armored, NEC color code, Single point connection at 1 corner of mat. No return wire like inferior products
Thickness .110" - .132" (nominal) Shorter cables are thinner.
Voltage 120 VAC
Wattage per SF 12
Spacing of Heating Wire 2.5" - 3" - 3.5" on center
Heated Area Size Covered 45
More Details
More Details
x
Brand Name WarmWire
Safety Listing UL (Underwriters Laboratory) Listed for U.S. and Canada under UL 1673 and CAN/CSA C22.2 No. 130-03, File No. E185866
Warranty from Manufacturer 25 year warranty backed by USA Manufacturer since 1873
What's In The Box WarmWire Spool(s), Cable Strap(s), SunStat Command Programmable Touch Screen Thermostat, Sensor Wire, LoudMouth, Tape, and Detailed Installation Manual.
Amp Draw 4.5
Wire Construction Blue Flexible Polyurethane WaterProof Jacket surrounding 2 ETFE insulated copper heating wires, metal jacket & ground wire drain
Total Watts 540 watts
Why Helps

WarmWire = Zero EMF

Electromagnetic fields (EMF) are generated by all electrical devices, and the possible dangers of exposure to EMF are still the subject of debate and scientific research. Out of concern for their customers' safety, SunTouch created the first EMF-canceling electric radiant floor heating system in 1993, and to this day they only manufacture and sell floor heating systems that use their patented EMF-canceling design. We provide this EMF information because it is important to some people, not to frighten you or exaggerate any risk like others do. We simply aim to inform you and leave the choice up to you after explaining what we know. Read More Here.
Acceptable Floor Coverings Natural Stone,Tile, Laminate, Engineered Woods, Carpet, Vinyl, Linoleum, Solid Hardwood (if you use sleepers)
